Time Lapse Recorder

Video Cassette Recorder

     Products quick links

Download Adobe Acrobat Reader

To view PDF files you must have Adobe Reader installed on your computer...


Video Cassette Recorder

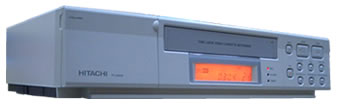

Time Lapse VCR for Audio-Visual

Model: VT-L4024E

(pdf 170KB)

  • Video/Audio Recording & Playback for 3, 12 and 24 Hours (E-180)
  • On-Screen Display for Multi-Functions (OSD)
    OSD lists every setting of the VCR in various operational modes.
  • Auto Head-Cleanr Mechanism
  • Connection Error Warning Display
    The 'NO VIDEO' message will appear on the monitor screen the
    moment there is no video signal any more during recording.
  • High Picture Quality
    300 lines for color pictures, 350 lines for monochrome.
  • 1-month battery power backup after full 48-hour charge
  • Mode-lock to prevent accidental switching during recording
  • Power failure recovery recording
  • High speed rewind (apporximately 150s with E-180)
  • LCD display

Functions & Specifications

 Video Cassette
 VHS type

 Rotary two-head helical scan azimuth recording

 Double-azimuth 4-head
 Tape Speed
 23.39mm/s (03 mode)
 Tape Width
 Recording Lengths
 3, 12, 24 hours
 Rewind Time
 Approx. 150s with E-180 videocassette
 Search Speed
 3X, 5X, 7X, 9X
 Video Format
 PAL color (System I) & CCIR monochrome signals
 (625 lines)
 Video Input  1Vp-p/75 ohm unbalanced
 Video Output
 1Vp-p/75 ohm unbalanced
 Signal-to-Noise Ratio (Video)
 More than 42dB (03 mode)
 Signal-to-Noise Ratio (Audio)  More than 40dB (03 mode)
 Horizontal Resolution

 Color: 300 lines (03 mode)

 Monochrome: 350 lines (03 mode)

 Audio Input
 -8dBm/50k ohm unbalanced
 Audio Output
 -9dBm/600 ohm unbalanced
 Audio Frequency Range
 100Hz to 8kHz (03 mode)
 Power  AC 230V/50Hz
 Power Consumption
 Cabinet Size
 435mm(W) x 99mm(H) x 280mm(D)
 Approx. 4.0kg
Design and specifications are subject to change without notice.
